CASE STUDY · EQUIPMENT INSTALLATION · ACTIVE FACILITY
OEM Equipment Install in a Live Plant, Zero Unplanned Downtime
Miller 3 Engineering was engaged to support the installation and integration of OEM equipment inside an active manufacturing and processing facility.
The project required careful sequencing, coordination with operations, and full ownership of installation scope to ensure production continuity.
Project photography

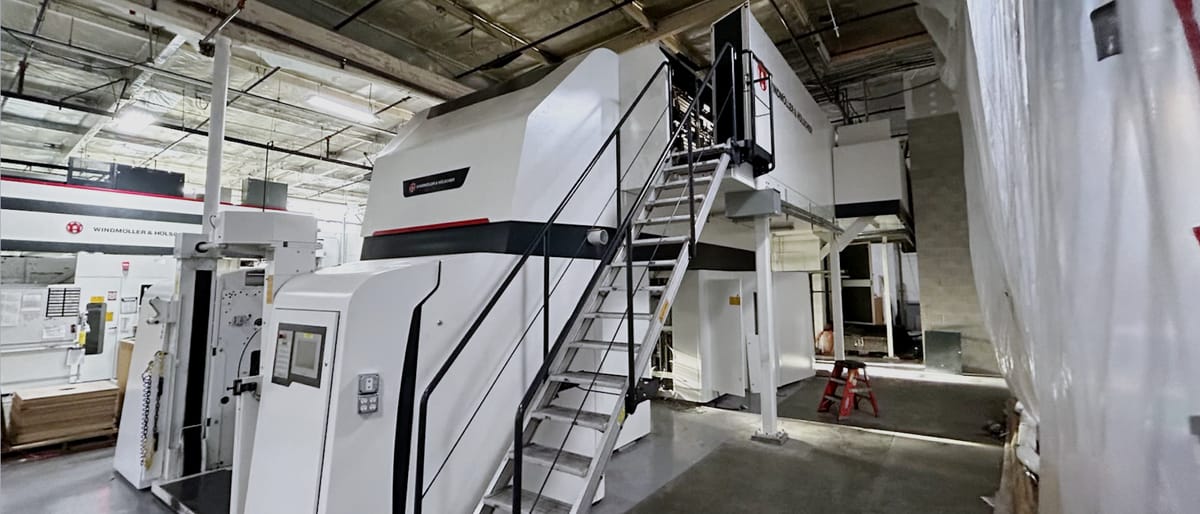

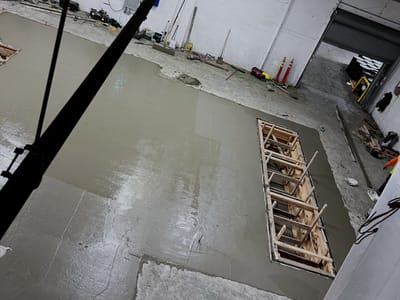

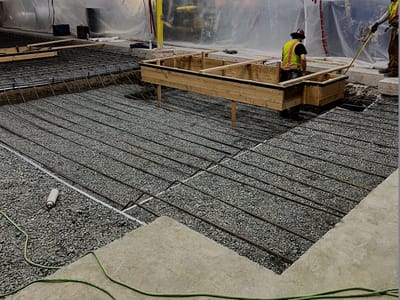

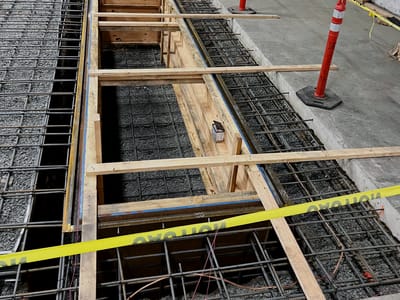

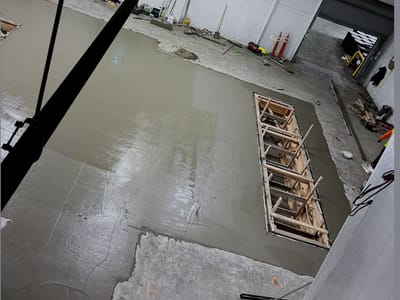

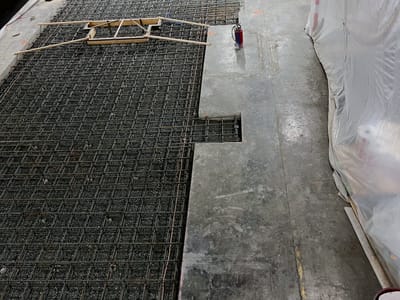

PRODUCTION LINE — INSTALLED AND RUNNINGM3E-PRJ-01 · FIG 01 MACHINE FOUNDATIONS — FORMED AND REINFORCEDM3E-PRJ-01 · FIG 02 FOUNDATION REINFORCEMENT — PLACED AND TIEDM3E-PRJ-01 · FIG 03 SLAB OPENINGS — CUT, FORMED, BARRICADEDM3E-PRJ-01 · FIG 04 FOUNDATION WORK — MATERIAL HANDLINGM3E-PRJ-01 · FIG 05 PIT AND TRENCH WORK — PRE-SETM3E-PRJ-01 · FIG 06
Results at a glance
- 0
- Unplanned downtime
- 0
- Extended shutdown window required
- 4
- Stakeholder groups coordinated: OEM, facility engineering, operations, and M3E
- On schedule
- Installed in alignment with OEM and facility expectations
Project challenges
Verbatim from the project record.
| Challenge | Why it mattered |
|---|---|
| Installation inside a live facility with no extended shutdown window | The plant kept producing. Every hour of the install had to fit around that |
| OEM equipment requiring precise placement and structural support | Placement tolerance was set by the manufacturer, not by what was convenient |
| Limited access and tight clearances | The route in constrained the rigging plan and the assembly sequence |
| Multiple stakeholders including OEM representatives, facility engineering, and operations | Three organizations with different priorities and different definitions of "done" |
| High expectations for safety, cleanliness, and schedule adherence | An active production environment sets a standard that a construction site does not |
Field-driven, execution-first
Miller 3 Engineering approached the project with a field-driven, execution-first mindset.
Scope boundaries first. Clear scope boundaries were established early between OEM responsibilities, facility scope, and installation activities. This is the single most valuable thing anyone does on a project like this, and it happens before the equipment ships or it does not happen at all.
The full detail
Standard operating procedures. SOPs were implemented to control sequencing, safety, and communication throughout the project. Not because a procedure binder is impressive, but because in a live facility with three other organizations on site, the alternative is somebody improvising in a production aisle.
Detailed site walks and pre-install risk identification. Conflicts found on a site walk cost a conversation. The same conflicts found during the install cost a weekend.
Coordination with facility engineering, and alignment with OEM installation expectations. The OEM's install requirements are not advisory. Meeting them is what protects the commissioning date and the warranty.
Installation planned around plant operations. Sequenced to minimize downtime while maintaining safety and quality standards.
Scope of work
| Scope item | Detail |
|---|---|
| Heavy rigging and precision equipment setting | In-house rigging. See rigging |
| Fabrication and installation of structural steel supports and access platforms | Fabricated in the M3E shop. See steel fabrication |
| Conveyor and material handling integration | Tie-in to existing conveyance |
| Coordination of utilities including electrical, air, and process services | See utility tie-ins |
| On-site problem solving and real-time field coordination | Practical, field-driven solutions when conditions differed from drawings |
That list is the point. Five scope items that, on a conventionally bid project, would have been five contracts and five schedules. Here they were one.
Results
The equipment was installed safely, on schedule, and in alignment with OEM and facility expectations.
No unplanned downtime occurred, and installation challenges were resolved without delay.
The facility received a fully integrated system ready for commissioning.
Three decisions, made early
One: the scope split was written down before anyone mobilized. Most live-plant install failures trace back to a boundary nobody defined. Who owns the anchor bolts. Who owns the disconnect. Who owns the gap between the OEM's baseplate and the facility's slab. When those are settled in writing at the start, the field crew makes decisions instead of escalating them.
Two: the site walk happened before the schedule hardened. Limited access and tight clearances were identified as project constraints, not discovered as project surprises. That is the difference between planning a rigging route and re-planning one at 5 a.m.
Three: the same company held rigging, structural, and utilities. When conditions differed from drawings, and they did, the person who could authorize a fix was already on site. There was no queue in front of the decision.
We are not a general labor provider or a pass-through contractor. We are an execution partner that takes responsibility for how equipment is installed, integrated, and handed over to operations.
The positioning line
Manufacturers build the equipment. Distributors sell it. Miller 3 Engineering designs and builds its own, installs and integrates theirs, and makes both run.
Divisions
Related services
Industrial Equipment Installation and Integration
Industrial equipment installation inside live plants. Structural supports, rigging, utility tie-ins, and commissioning support. 600 miles from Sacramento.
In-House Rigging and Equipment Setting
Fully in-house industrial rigging. Receive, offload, stage, and set equipment with our own personnel. 600 miles from Sacramento.
Industries
Industries this work runs in
Food and Beverage Processing Equipment Installation
Food and beverage processing equipment installation inside live plants. Sanitary supports, utility tie-ins, washdown design. 600 miles from Sacramento.
Manufacturing and Assembly Line Equipment Installation
Manufacturing and assembly line equipment installation in live plants. Rigging, structural supports, utility tie-ins, commissioning support.
Common questions
Can you name the client for this project?
Not publicly. A large share of our work happens inside operating plants where the layout, process, and equipment are competitively sensitive, and we do not publish client names or identifiable process details without written permission. References are provided directly during a bid.
What does "no unplanned downtime" actually mean?
It means production did not stop for any reason other than the windows that were scheduled and agreed in advance. Installations inside live plants almost always require some planned interruption for the tie-in itself. The failure mode this result rules out is the unplanned kind: the line going down because something was discovered mid-install, or because a trade was not ready, or because a conflict took two days to resolve.
How was the OEM relationship handled?
Scope boundaries were established early between OEM responsibilities, facility scope, and installation activities, and the installation was aligned with OEM installation expectations throughout. The result was handed over as a fully integrated system ready for the OEM's commissioning. Working with OEM representatives is a normal part of our installation work, not an exception. See equipment installation.
Could you do the same thing at our plant?
That depends on the specifics, and the honest answer requires a site walk. What transfers from this project is the method: scope boundaries in writing before mobilization, pre-install site walks and constructability review, installation sequenced around plant operations, prefabrication to compress the on-site window, and one accountable team holding rigging, structural, and utilities. Installation and field services reach 600 miles from Sacramento.
What would you have done differently?
Involved earlier. On every project of this type, the cheapest decisions are the ones made while the equipment is still being specified, because that is when a door width, a beam capacity, or a panel schedule can still be changed without a change order. Most clients call when the equipment has a ship date. That works, and it costs more overtime than it needs to.
