PROJECT · STRUCTURAL STEEL · FIELD WELDING AT HEIGHT
Industrial Water Tank Structural Rehabilitation
Structural modifications, railing, and access improvements on an existing industrial water tank, including elevated field welding.
Tank work is the opposite of shop work. Everything is at height, everything is curved, nothing matches the original drawing, and the asset usually has to stay in service.
Project photography

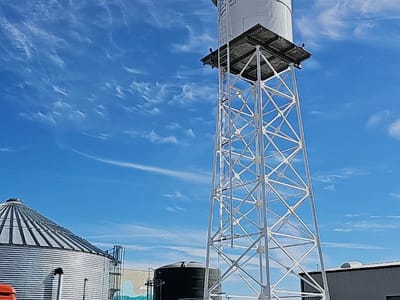

FIELD WELDING — TIED OFF AT THE EDGEM3E-PRJ-06 · FIG 01 ELEVATED TANK AND TOWERM3E-PRJ-06 · FIG 02
Scope performed
Drawn from the M3E project portfolio.
| Scope | Detail |
|---|---|
| Water tank rehabilitation and structural modifications | Repair and modification of existing tank structure |
| Water tank railing and access improvements | Guardrail and access system upgrades on the tank |
| Field welding and elevated structural modifications | Welding performed at height on the in-place structure |
| Structural steel fabrication and erection | Fabricated components installed on the existing asset |
The original drawings are wrong, and the tank does not care
Three things make tank rehabilitation harder than new fabrication.
Nothing is where the drawing says. Tanks get modified over decades. Nozzles get added, ladders get relocated, platforms get bolted on by whoever needed access that year. Field verification is not a formality, it is the design phase.
The full detail

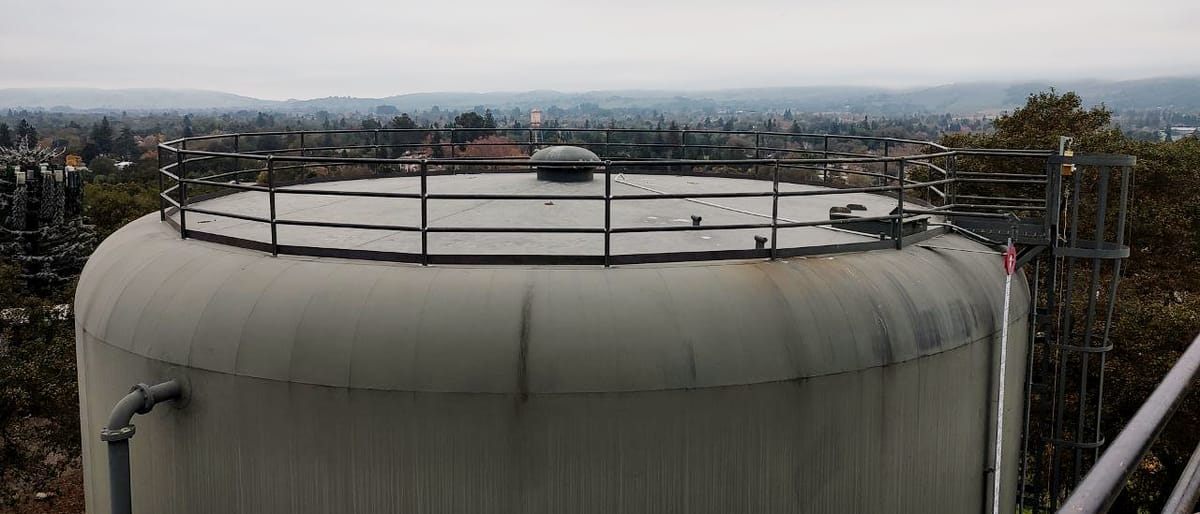

Everything is curved and at height. A guardrail that would be a straightforward run on a flat roof becomes a curved layout on a shell, fabricated to a radius, installed from a lift or a rigged platform, by people working in fall protection all day.
The asset usually cannot come out of service. Which means hot work on or near a vessel that is holding something, with the permitting, isolation, and coordination that requires.
Combine those and you get a job where the fabrication is straightforward and the execution is the entire difficulty. That is the kind of work an in-house field crew with real rigging is built for.
What the access side usually involves
| Item | Why it comes up on tanks |
|---|---|
| Fixed ladders over 20 ft | Tanks are one of the most common places in-scope ladders live. See fixed ladder fall protection |
| Fall-arrest retrofits | Existing tank ladders frequently have a cage and no arrest system |
| Guardrail on the tank top and platforms | Curved layouts, priced per linear foot. See handrails and guardrails |
| Access platforms and landings | Transition from ladder to tank top, and around nozzles and equipment |
| Self-closing gates | At ladder and hatch openings |
| Corroded member replacement | Structural repair of what the environment has taken |
Facilities that own tanks almost always have a fixed-ladder problem attached to them, and the survey is usually the same trip.
The part that separates shops from contractors
Plenty of fabricators can weld a bracket on a bench. Fewer can put a certified weld on a curved shell, 40 feet up, in a lift, in wind, with a fire watch below and a plant operating around them.
Field welding and elevated structural modifications appear as a distinct line in the M3E project portfolio because it is a distinct capability, and it is the one that determines whether tank and elevated structural work is even possible for a given contractor.
Divisions
Related services
Industries
Industries this work runs in
Common questions
Do you work on tanks that are still in service?
Working inside live operating facilities where safety, coordination, and schedule control are critical is the core of the business, and tank work is often exactly that situation. Whether a specific tank can stay in service during a specific scope depends on the work, the contents, and the hot-work requirements, and that is determined at the site walk rather than assumed at quote.
Can you upgrade tank access to meet current fall protection requirements?
Yes, and it is frequently the reason a tank project starts. In California, Cal/OSHA 8 CCR §3277(g)(2) puts fixed ladders over 20 feet in scope, stricter than the federal 24-foot trigger under 29 CFR 1910.28(b)(9), and replacing any ladder section obligates that section to the current standard today. Tanks are one of the most common locations for those ladders. We fabricate and install fall-arrest retrofits, new compliant ladders, guardrail, platforms, and gates. See OSHA 1910.28(b)(9).
How do you quote structural rehabilitation when the condition is unknown?
With a site walk first, and honestly about what is not yet known. Rehabilitation scope frequently expands once access is established and the actual condition is visible, which is why we would rather define a survey and inspection phase up front than issue a fixed number against an assumption and argue about it later.
Send photos of the tank and the access
Particularly the ladder, the top platform, and anything visibly corroded.
